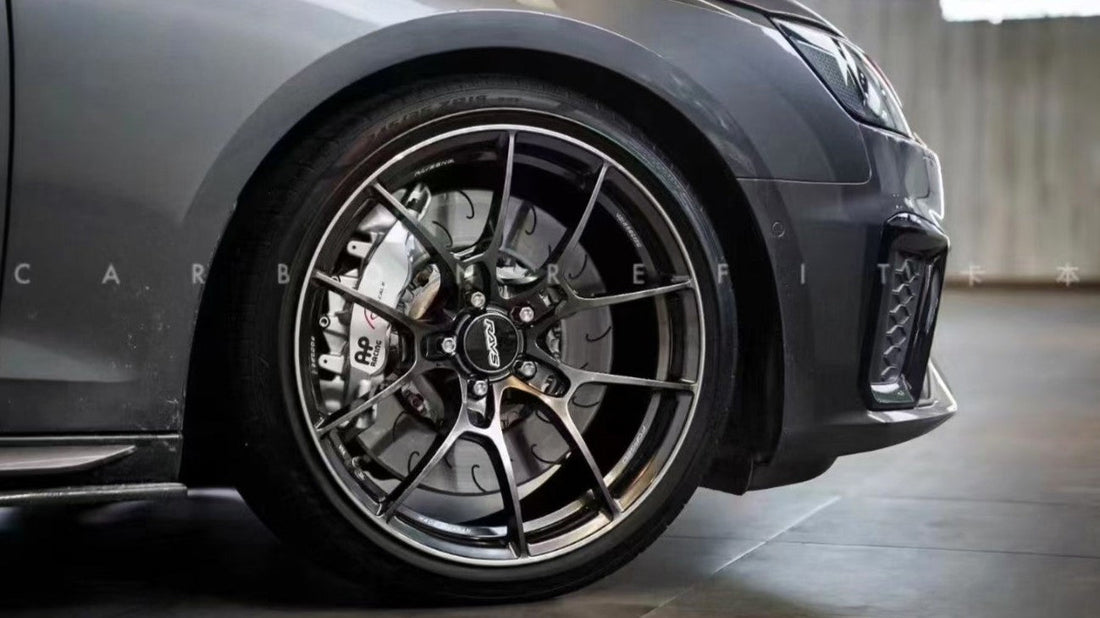

Audi A4 B9 Titanium Wheel Lug Bolts with RAYS G025 HK 19-Inch Wheels in Australia customer feedback Aumotor

Audi A4 B9 Titanium Wheel Lug Bolts with RAYS G025 HK 19-Inch Wheels

Customer Case Study: Precision Fitment, Reduced Unsprung Mass, and OEM-Level Safety

When upgrading wheels on a modern Audi, visual appeal alone is never sufficient. Proper fitment, correct thread specifications, and long-term mechanical reliability are critical—especially on platforms like the Audi A4 B9, where factory tolerances and suspension geometry are engineered with exceptional precision.

In this customer case study, we examine an Audi A4 B9 equipped with RAYS G025 HK 19-inch forged wheels, focusing on the real-world installation and performance benefits of aerospace-grade titanium wheel bolts, and why selecting the correct wheel bolts for Audi A4 models is just as important as choosing the wheels themselves.

Vehicle and Wheel Setup Overview

  • Vehicle: Audi A4 B9 (2017–2020 platform)
  • Wheels: RAYS G025 HK forged wheels, 19-inch
  • Wheel Bolt Upgrade: Titanium wheel bolts (Ti-6Al-4V aerospace-grade)
  • Driving Use: Daily street driving with occasional spirited runs

The owner’s primary goal was to reduce unsprung mass while maintaining OEM-level safety, serviceability, and full compatibility with Audi’s factory hub and braking system.

Australia Aumotor Audi A4 B9 Titanium Wheel Lug Bolts close-up detail image

Audi Wheel Bolt Size and Thread Specifications Explained

One of the most common mistakes when upgrading wheels on Audi vehicles is overlooking Audi-specific wheel bolt size and thread specifications. Unlike many manufacturers that use wheel studs and nuts, Audi relies on wheel bolts, making dimensional accuracy far more critical.

The factory specifications for the Audi A4 B9 are:

  • Thread size: M14 × 1.5
  • Seat type: Ball seat (R13)
  • Typical bolt length:
    • OEM wheels: approximately 27 mm
    • Aftermarket wheels: typically 28–35 mm (depending on wheel pad thickness or spacers)

In this configuration, the RAYS G025 HK wheels required a slightly longer shank length than OEM to ensure full thread engagement without bottoming out inside the hub. The titanium wheel bolts were selected to match the wheel mounting pad thickness while meeting Audi’s minimum thread engagement requirements.

Correct specifications are not optional. Incorrect bolt length or seat geometry can result in uneven clamping force, wheel vibration, or long-term damage to the wheel and hub assembly.

Audi A4 B9 Titanium Wheel Lug Bolts customer feedback after modification in Garage
Audi A4 B9 Titanium Wheel Lug Bolts with RAYS G025 HK 19-Inch Wheels whole body image Australia Aumotor

Why Choose Titanium Wheel Bolts for an Audi A4?

1. Significant Reduction in Unsprung Mass

Titanium wheel bolts are approximately 40–45% lighter than steel equivalents. Across a full set of 20 bolts, this produces a meaningful reduction in both unsprung and rotational mass—especially noticeable when paired with lightweight forged wheels such as the RAYS G025.

2. High Strength and Excellent Fatigue Resistance

Aerospace-grade Ti-6Al-4V titanium delivers tensile strength comparable to high-grade steel while offering superior fatigue resistance. This is critical for wheel bolts that experience repeated torque cycles during installation, removal, and thermal expansion.

3. Natural Corrosion Resistance

Unlike coated steel bolts, titanium does not rely on surface plating for corrosion protection. Even after prolonged exposure to moisture, road salt, and brake heat, titanium wheel bolts maintain clean threads and structural integrity—making them ideal for daily-driven Audi vehicles.

Installation Results and Driving Feedback

After installation and torqueing to Audi factory specifications, the owner reported:

  • Smooth, vibration-free driving at highway speeds
  • Improved steering response due to reduced rotational mass
  • No bolt loosening after multiple heat cycles
  • Cleaner wheel hub area during routine maintenance

Visually, the titanium finish complemented the motorsport-inspired design of the RAYS G025 HK wheels, delivering a refined performance aesthetic without appearing overly aggressive.

Audi A4 B9 right back side after the installation of titanium wheel lug bolts image

How to Choose the Correct Wheel Bolts for an Audi A4

This case reinforces an important point: wheel bolts for Audi A4 models are not universal. Wheel brand, offset, mounting pad thickness, and seat geometry all directly influence bolt selection.

When upgrading wheels on an Audi A4 B9, always verify:

  • Correct M14 × 1.5 thread specification
  • Proper R13 ball seat compatibility
  • Accurate bolt length for aftermarket wheels or spacers
  • Material quality and tight manufacturing tolerances

When properly specified, titanium wheel bolts provide long-term functional benefits that go far beyond cosmetic enhancement.

Final Thoughts

For Audi A4 B9 owners running premium forged wheels such as the RAYS G025 HK 19-inch, titanium wheel bolts represent a refined upgrade aligned with Audi’s engineering philosophy: precision, efficiency, and reliability.

This customer case study demonstrates that understanding Audi wheel bolt size and thread specifications is essential—not only for safety, but also for unlocking the full performance potential of aftermarket wheels.
