Extended Lug Bolts for McLaren Wheel Spacers: 12mm Fitment, Length & Safety Guide

McLaren wheel spacers are precision-machined metal rings installed between the wheel and the hub to adjust a car’s track width without modifying the suspension. By moving the wheels outward—typically from 5mm to 25mm or more—wheel spacers significantly enhance both wheel clearance and overall handling performance.

There are many reasons why owners choose to install McLaren wheel spacers, with the most common being:

• Improved handling and cornering stability
• Increased clearance for brake and suspension components
• Enhanced visual stance and wheel fitment

High-quality wheel spacers are manufactured using high-strength materials and CNC precision machining, ensuring excellent durability, perfect hub fitment, and long-term safety across a wide range of McLaren models.

Key Benefits of McLaren Wheel Spacers

✅ Increased Brake Clearance

Wheel spacers provide extra room between the wheel and the braking system, making them ideal for big brake kit (BBK) upgrades by preventing caliper-to-wheel interference.

✅ Improved Vehicle Stability

By widening the vehicle’s track width, McLaren wheel spacers enhance lateral grip, cornering balance, and high-speed stability.

✅ Compatibility with Wider Tires

Spacers allow the use of wider tires without rubbing against suspension struts or inner fender liners.

✅ Corrected Wheel Offset (Fitment Optimization)

Aftermarket wheels often differ from factory offsets. Wheel spacers help restore ideal positioning for improved appearance and performance.

Do You Need Extended Lug Bolts with McLaren Wheel Spacers?

When installing McLaren wheel spacers, safety becomes even more critical because additional components increase the total mounting thickness. In most cases, extended lug bolts are required to maintain proper thread engagement and secure clamping force.

✅ Real-World Example (McLaren 540C)

• 12mm front wheel spacers
• 25mm rear wheel spacers

Assuming the factory McLaren lug bolt length is 27mm, the correct extended lug bolts are calculated as follows:

• Front: 27mm + 12mm = 39mm extended lug bolts
• Rear: 27mm + 25mm = 52mm extended lug bolts

Without the correct bolt length, thread engagement would be insufficient and unsafe.

Are McLaren Wheel Spacers Safe?

Many owners worry that McLaren wheel spacers may add additional stress to the wheel bearings and extended lug bolts. In reality, this concern mainly comes from poor experiences with low-quality spacers.

Low-grade spacers often suffer from:

• Weak material strength
• Poor machining tolerances
• Inaccurate hub-centric design

These defects can cause uneven load distribution, increasing long-term stress on wheel bearings and bolts, and potentially creating safety hazards.

However, high-quality hub-centric McLaren wheel spacers, manufactured with precision CNC machining, fit tightly against the factory hub bore. This allows the vehicle’s weight to continue being supported by the hub—rather than relying entirely on the bolts for load bearing. As a result, the overall load and stress remain nearly the same as stock, with no meaningful increase to wheel bearing or bolt fatigue.

✅ The key factor is not whether you use spacers—but whether you use correctly engineered, hub-centric, high-strength wheel spacers.

(12mm McLaren hub centric wheel spacers after install for the front left wheel)

What Is the Required Length for Extended Lug Bolts?

The required length of extended lug bolts is determined by:

• Spacer thickness
• Original factory lug bolt length

The objective is to maintain the same thread engagement depth as the OEM setup.

✅ Basic Calculation Formula

Required Extended Lug Bolt Length = Factory Lug Bolt Length + Spacer Thickness

✅ Example Calculations

✅ Minimum Safe Thread Engagement

• M12 bolts: Minimum 12–18mm engagement
• M14 bolts: Minimum 14–21mm engagement

If the engagement length is below this range, the bolt is too short and unsafe, even if it appears fully tightened.

✅ Other Factors That Affect Extended Lug Bolt Length

• Wheel Pad Thickness: Thicker wheel mounting pads require longer bolts.
• Ball Seat vs Cone Seat: Seat type does not affect bolt length, but seat mismatch will cause loosening and failure.
• Brake Rotor Hat Thickness: Some big brake kits slightly change total stack height.

Slip-On vs Bolt-On Wheel Spacers

• Slip-on spacers → require extended lug bolts
• Bolt-on spacers → use original lug bolts (do NOT add bolt length)

When McLaren wheel spacers reach or exceed 20mm, bolt-on wheel spacers are strongly recommended. This is related to shear force acting on extended bolts. With bolt-on spacers, two independent sets of high-strength fasteners (spacer-to-hub and wheel-to-spacer) provide significantly higher safety margins.

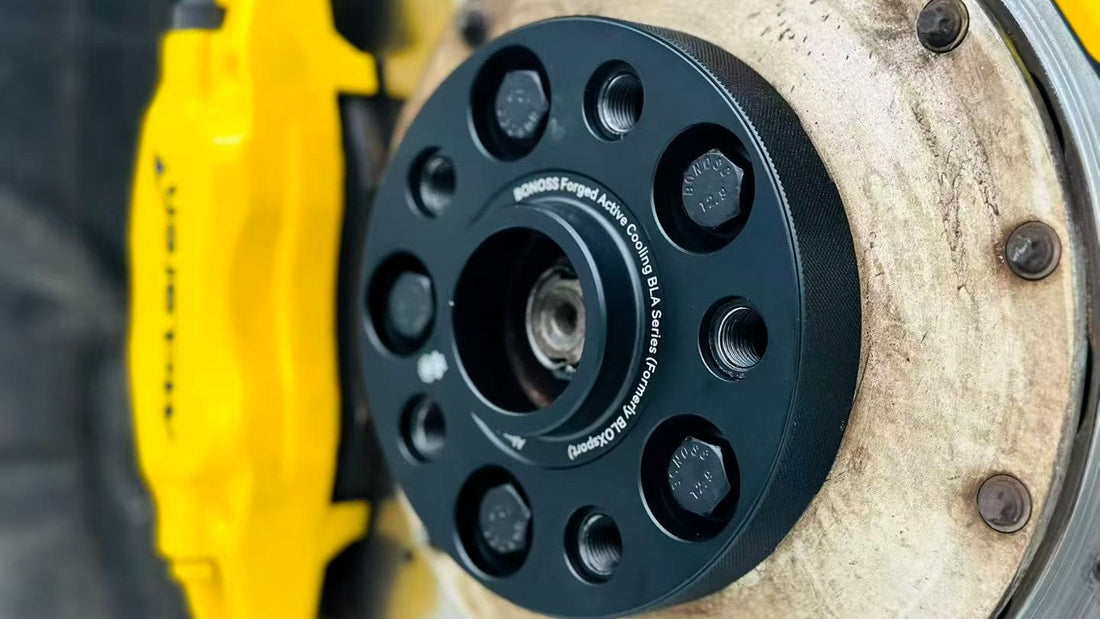

For example, the 25mm rear McLaren wheel spacers mentioned earlier use two full sets of 12.9-grade high-strength bolts, ensuring extreme clamping stability.

Extended Lug Bolt Length Options (Aumotor)

Aumotor currently offers extended lug bolts in the following lengths:

27mm, 30mm, 32mm, 35mm, 37mm, 40mm, 42mm, 45mm, 47mm, 50mm

Additional custom lengths are available through custom manufacturing services.
