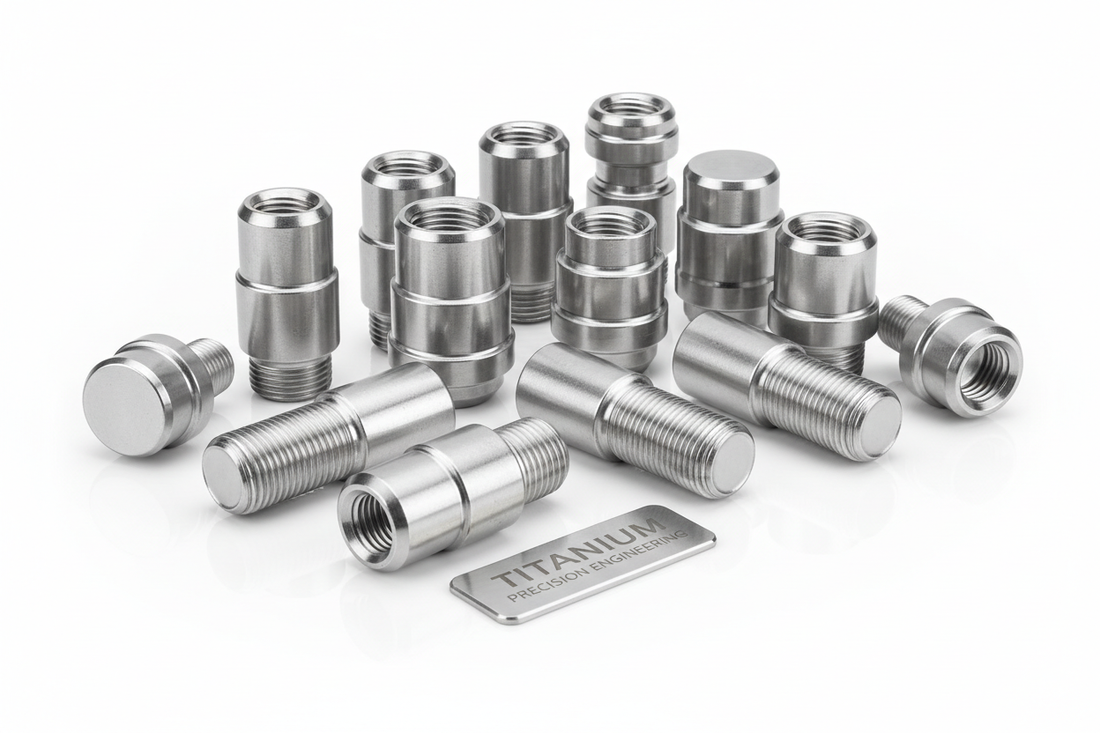

Titanium Fastener Engineering: Why TC4 Is the Rational Choice
Engineering Summary
In automotive wheel bolts, studs, and spacers, material selection is not about achieving the highest tensile number on a datasheet. The true objective is long-term stability under real-world conditions: stable clamping force, fatigue resistance, corrosion durability, and predictable behavior over repeated load and heat cycles.
After evaluating the full spectrum of mainstream titanium alloys used in the market, TC4 (Ti-6Al-4V) remains the most balanced and reliable material for automotive fasteners. For this reason, it is the only titanium alloy used in our products.
1. The Evolution of Titanium Alloys in Engineering
Titanium alloys were first developed for aerospace applications in the mid-20th century. The original goal was not extreme strength, but rather achieving significant weight reduction while maintaining controlled and predictable structural performance.
Early applications relied heavily on commercially pure titanium (TA series), which offered excellent corrosion resistance but insufficient strength for structural or fastening use. As engineering demands increased, α+β titanium alloys emerged as the dominant solution.
Among them, Ti-6Al-4V (TC4) became the most widely adopted alloy. Its success lies not in maximizing a single performance metric, but in achieving a carefully engineered balance between strength, ductility, fatigue resistance, and manufacturability. This balance has made TC4 the long-term standard in aerospace structures, medical implants, and high-reliability industrial fasteners.
2. Comparison of Mainstream Titanium Alloys for Automotive Fasteners
Several titanium alloy grades are commonly referenced in the automotive aftermarket. However, each was originally designed for a different engineering objective.
TC4 (Ti-6Al-4V)
- Type: α+β titanium alloy
- Key characteristics: Balanced strength, ductility, and fatigue performance
- Typical applications: Aerospace structures, medical implants, automotive fasteners
- Engineering assessment: Optimal for high-cycle, long-term automotive use
TC6
- Type: Near-α titanium alloy
- Key characteristics: Good high-temperature stability
- Limitations: Moderate fatigue performance at room temperature
- Assessment: Not optimized for vibration-intensive fastening systems
TC11
- Type: High-strength α+β titanium alloy
- Key characteristics: Higher tensile and yield strength
- Limitations: Reduced elongation and narrower fatigue tolerance
- Assessment: Sensitive to installation variation and surface defects
TC18
- Type: Near-β titanium alloy
- Key characteristics: Very high strength potential
- Limitations: Narrow heat-treatment window, high cost, lower fatigue margin
- Assessment: Unsuitable for automotive wheel fasteners
Engineering conclusion: Higher-grade aerospace titanium alloys do not automatically translate into safer or more suitable automotive fasteners.
3. What Automotive Wheel Fasteners Actually Require
Automotive fasteners experience fundamentally different loading conditions compared to aerospace structures. Wheel bolts and studs must withstand:
- Stable preload retention under vibration and thermal cycling
- Sufficient ductility to tolerate installation variation and micro-deformation
- High fatigue resistance under continuous cyclic loading
- Intrinsic corrosion resistance independent of surface coatings
TC4 aligns closely with these requirements, offering a predictable and forgiving performance window in real-world automotive environments.
4. Engineering Data Comparison of Common Fastener Materials
Typical engineering ranges for material-level comparison:
| Material | Type | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Density (g/cm³) | Fatigue Friendliness | Automotive Suitability |
|---|---|---|---|---|---|---|---|
| TC4 (Ti-6Al-4V) | α+β | 900–1,000 | 830–880 | 10–14 | ~4.43 | High | Excellent |
| TC6 | Near-α | 980–1,050 | 880–950 | 8–10 | ~4.50 | Medium | Limited |
| TC11 | α+β | 1,050–1,150 | 950–1,000 | 7–9 | ~4.60 | Low | Limited |
| TC18 | Near-β | 1,100–1,200 | 1,050–1,100 | 6–8 | ~4.65 | Low | Poor |
| Grade 10.9 Steel | Quenched & Tempered | 1,040 | ≥940 | ≥9 | ~7.85 | Medium | Moderate |
Key insight: TC4 achieves the most stable balance between strength, ductility, fatigue tolerance, and weight reduction.
5. Why We Do Not Emphasize Extreme Tensile Test Results
Ultimate tensile failure is rarely the real failure mode of automotive fasteners. In practice, failures originate from fatigue cracking, preload loss under thermal cycling, or corrosion-induced stress concentration.
Excessive focus on peak tensile numbers often masks critical trade-offs: higher strength usually comes with reduced ductility and a narrower safety margin. When failure occurs, it is more sudden and less predictable.
For this reason, we prioritize engineering performance ranges and long-term reliability over laboratory extreme values.
6. Weight Reduction and Unsprung Mass Considerations
Although small in size, wheel fasteners are part of the vehicle’s unsprung mass. Material density has a direct impact on suspension response and handling feedback.
| Material | Density (g/cm³) | Relative Weight | Notes |
|---|---|---|---|
| TC4 Titanium | ~4.43 | 1.0× | Baseline |
| Grade 10.9 Steel | ~7.85 | ~1.77× | Significantly heavier |
| Aluminum Alloy | ~2.7 | ~0.6× | Insufficient strength for wheel fasteners |
TC4 delivers approximately 40–45% weight reduction compared to steel, without compromising fatigue safety.
7. From Engineering Logic to Product Choice
TC4’s dominance in automotive titanium fasteners is not driven by trends or marketing claims. It is the result of decades of engineering validation across industries where failure is not an option.
It may not present the most aggressive numbers on paper, but in real-world automotive use, TC4 offers the most predictable, controllable, and reliable performance envelope.
Frequently Asked Questions
Is TC4 suitable for daily driving?
Yes. TC4’s fatigue resistance and corrosion stability make it ideal for long-term, everyday automotive use.
Will titanium fasteners rust?
No. TC4 forms a stable oxide layer that provides intrinsic corrosion resistance without relying on surface coatings.
Why not use TC11 or TC18?
Because their higher strength comes at the expense of ductility and fatigue tolerance, which are critical for wheel fasteners.
Do titanium fasteners require different torque values?
Properly designed TC4 fasteners can be safely installed using OEM torque specifications, with guidance where applicable.
